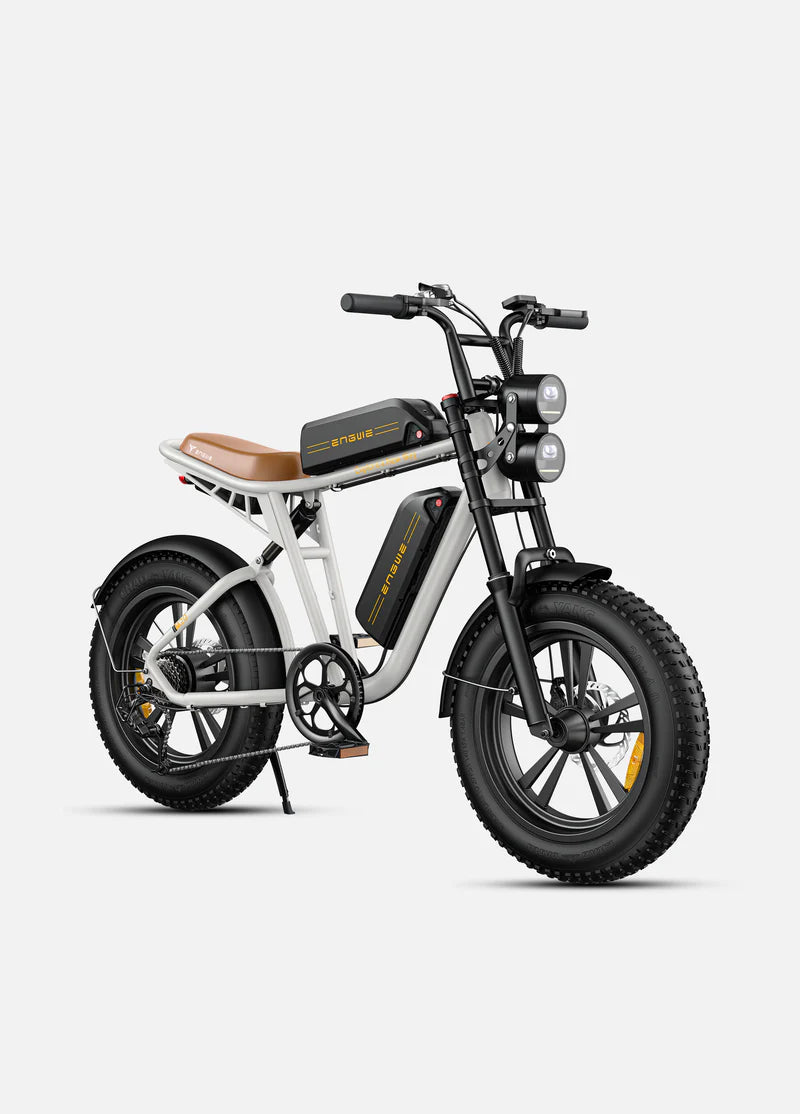

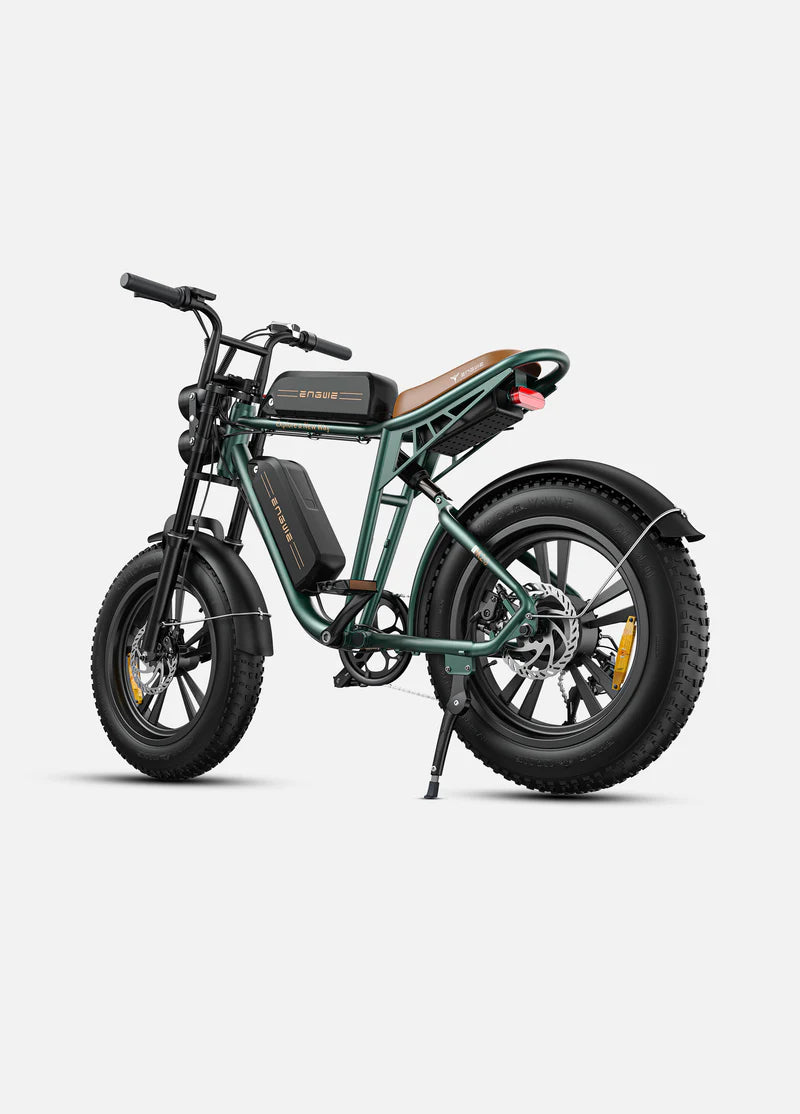

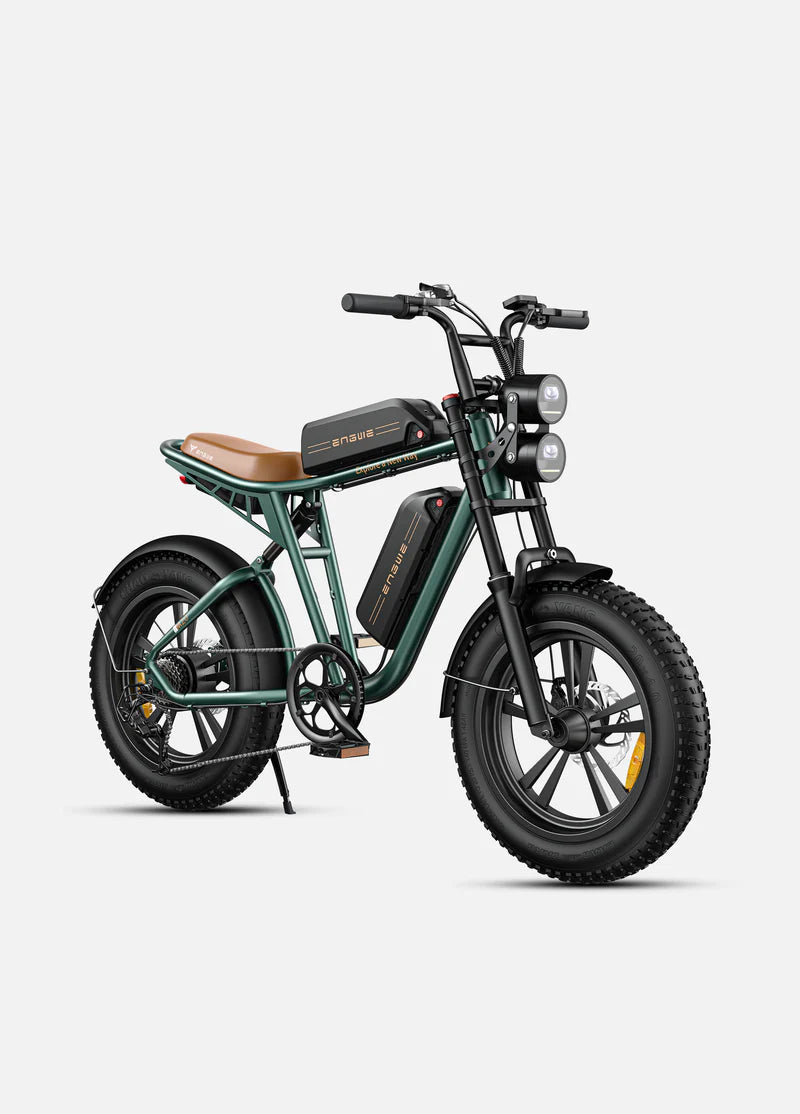

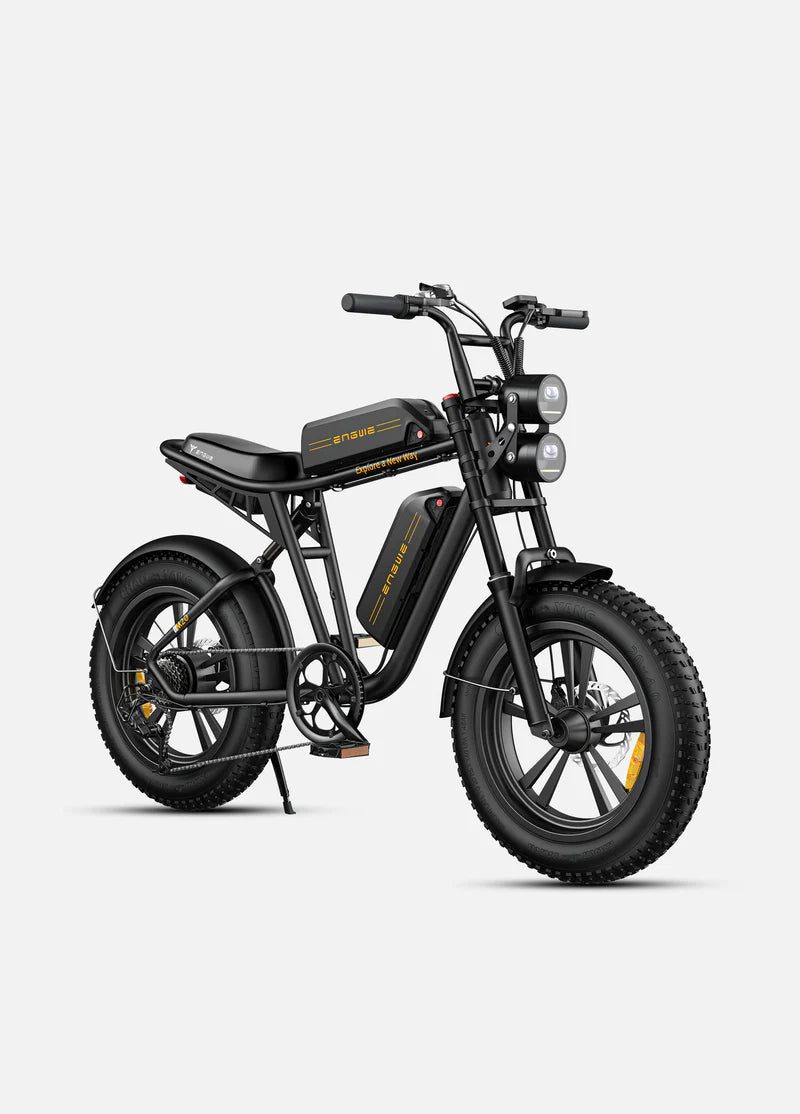

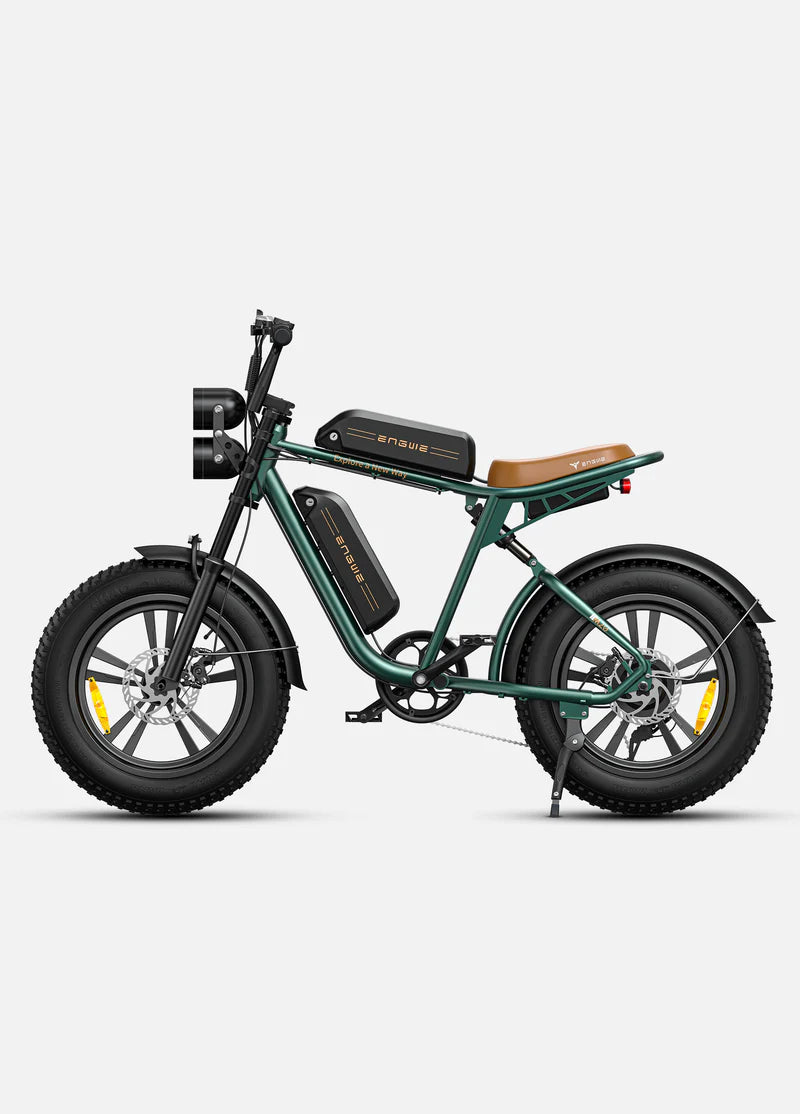

ENGWE M20 ELECTRIC BIKE [DUAL BATTERY 26AH]

Specs \n

\n
• Motor: 750W Brushless Motor
\n
• Speed: 25 km/h (Speed can be unlocked)
\n
• Material: 6061 Aluminum Alloy
\n
• Torque: 55 N.m
\n
• Tires: 20 x 4.0 Fat Tires
\n
• 13Ah Battery Version: 48V13Ah Lithium-Ion Battery *1
\n
• 26Ah Batteries Version: 48V 13Ah Lithium-Ion Battery *2
\n
• Max Mileage: 34.17 Miles (55KM) at Electric Mode 1 and 46.6 Miles (75KM) at PAS mode 1
\n
• Charging Time: About 5H
\n
• Maximum Climbing degree: 10°
\n
• Brake: 160mm Front & Rear Disc Machine Brake
\n
• Transmission System: Shimano 7 Gears
\n
• Display: LCD Display
\n
• Bike Weight: 76.72lbs (34.8KG)
\n
• 13Ah Battery Version Gross Weight: 94.13lbs (42.7KG)
\n
• 26Ah Battery Version Gross Weight: 104.05lbs (45.9KG)
\n
• Rider Height: 5.0 (ft) -6.8 (ft)
\n
• Payload Capacity: 120 kg (264lbs)
\n
• Package Dimensions (LWH): 140*33*87 cm
\n

\n26Ah Battery Version \n

\n
• M20 E-bike *1
\n
• 48V13Ah Lithium-Ion *2
\n
• Battery Charger *1
\n
• Assembly Tools *1
\n
• Pedals *2
\n
• Handle Bars Shipped Installed On Bike *1
\n
• User Manual *1
\n

\nHow to assemble M20 e-bike? \n \nPlease click here to view the instructional bike assembly video for the M20. \n \nHow to install the second battery in the M20? \n \nPlease click here to view the instructional video for installing the second battery in the M20. \n \n M20 User Manual? \n \nPlease click here to view the M20 User Manual. \n \nHow dual batteries work? \n \n1. When a second battery is installed, a button next to the battery can be pressed to switch it on. \n2. When both batteries are turned on, the bike will automatically use them collectively. \nPlease note: The higher voltage and power of the two batteries will be used first, the power of both batteries will be used at the same time when the voltage and power of the two batteries are at the same level. For example: one battery voltage and power at 50, other at 40. The voltage and power of the battery with 50 will be used first, when used to 40, both batteries will be used together until the power is run out. \n \nWhere is the second battery mount? \n \nThe second battery comes packaged with its own battery mount. The second battery and the e-bike are sold separately. \n \nMy M20 won’t turn on or is losing power while riding? \n \nPlease click here to view an instructional video on solving these issues. \n \nUnboxing and general bike setup? \n \n Unboxing the M20 \n M20 Throttle activation \n M20 Throttle deactivation \n How to restore the M20 to factory default \n How to adjust the speed limit \n Dual battery installation guide

\n \n \n\n \n \n \n\n \n \n \n \n \n \n \n \n \n\n \n \n \n\n \n \n \n\n \n \n \n\n \n \n \n\n \n \n \n\n \n \n \n \n \n \n

Keeping You Safe & Lighting The Path Ahead

\n\n \n\nThe High-Brightness front LED ensures that the road ahead is well-lit with its impressively long range.\n\n \n \n \n \n \n

Triple Layer Fat Tires

\n\n \n\nThe 20 x 4.0-inch fat tires are equipped with a three-layer design made up of imported rubber, carbon nano braiding, and a butyl rubber inner tube that enables you to travel comfortably on any terrain.\n\n \n \n \n \n \n

Dual Disk Brakes

\n\n \n\nBoth the front and rear wheels are fitted with a dual disk brake system with a fast heat dissipation design that allows for safe and smooth braking in any situation.\n\n \n \n \n \n \n

SHIMANO 7-speed

\n\n \n\nA SHIMANO derailleur delivers reliable and accurate gear shifting, paired with a drivetrain made up of high-quality components\n\n \n \n \n \n \n

Light-Weight Aluminum Alloy Frame

\n\n \n\nThe M20 is built with lightweight aluminum alloy that boasts a weight 40% lighter than bikes made of high-carbon steel. This design feature makes the M20 easier to ride.\n\n \n \n \n \n \n

Clear At A Glance

\n\n \n\nThe LCD display offers riders real-time information at a glance that includes your current speed, battery level, mileage, and more, keeping your attention on road conditions at all times. The bright screen is easily viewed even in direct sunlight.\n\n \n \n \n \n \n \n
